EMBASSY
DOLPHIN SL
Embassy continues its reputation for innovation with the Dolphin SL™. It’s revolutionary floorplan allows for two separate sleeping areas, one of which converts into a desk or extended countertop area. It’s ideal for travelers who prefer or need to sleep separately. It also features the largest storage capacity of any Embassy vehicle.
EMBASSY DOLPHIN SL
Features
SEPARATE SLEEPER CONCEPTS
The Embassy® Dolphin SL™ provides two separate sleeping areas: one as a telescoping sofa bed in front and an convertible platform bed in back.
The two sleeping areas are far enough apart to ensure you won’t disturb anyone who decides to turn in early or sleep in late.

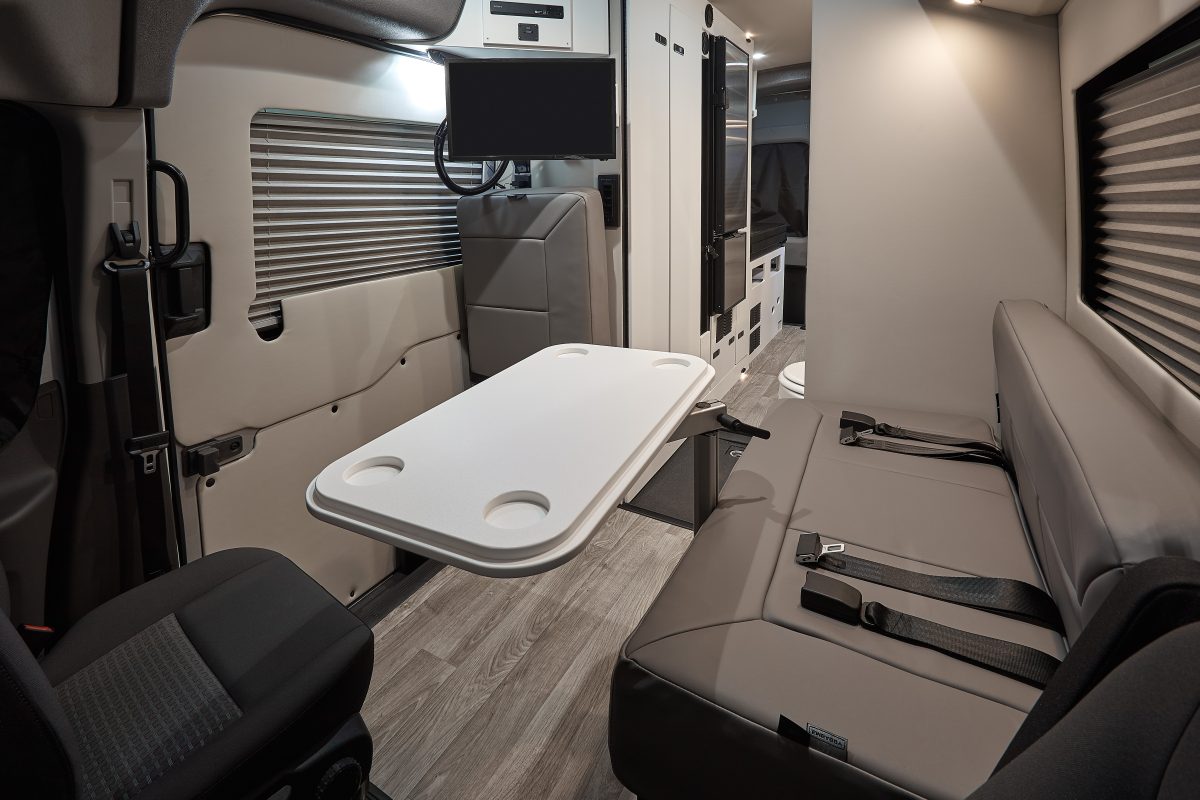

TELESCOPING SOFA BED
Located in the front section of the cabin, the Embassy telescoping sofa bed is easy for anyone to set up in about 20 seconds. The bed platform glides out with a simple pull. The three triple-density foam cushions are easily laid into place to create a comfortable 45” x 69” sleeping space.
View a brief video of the telescoping sofa bed in action.

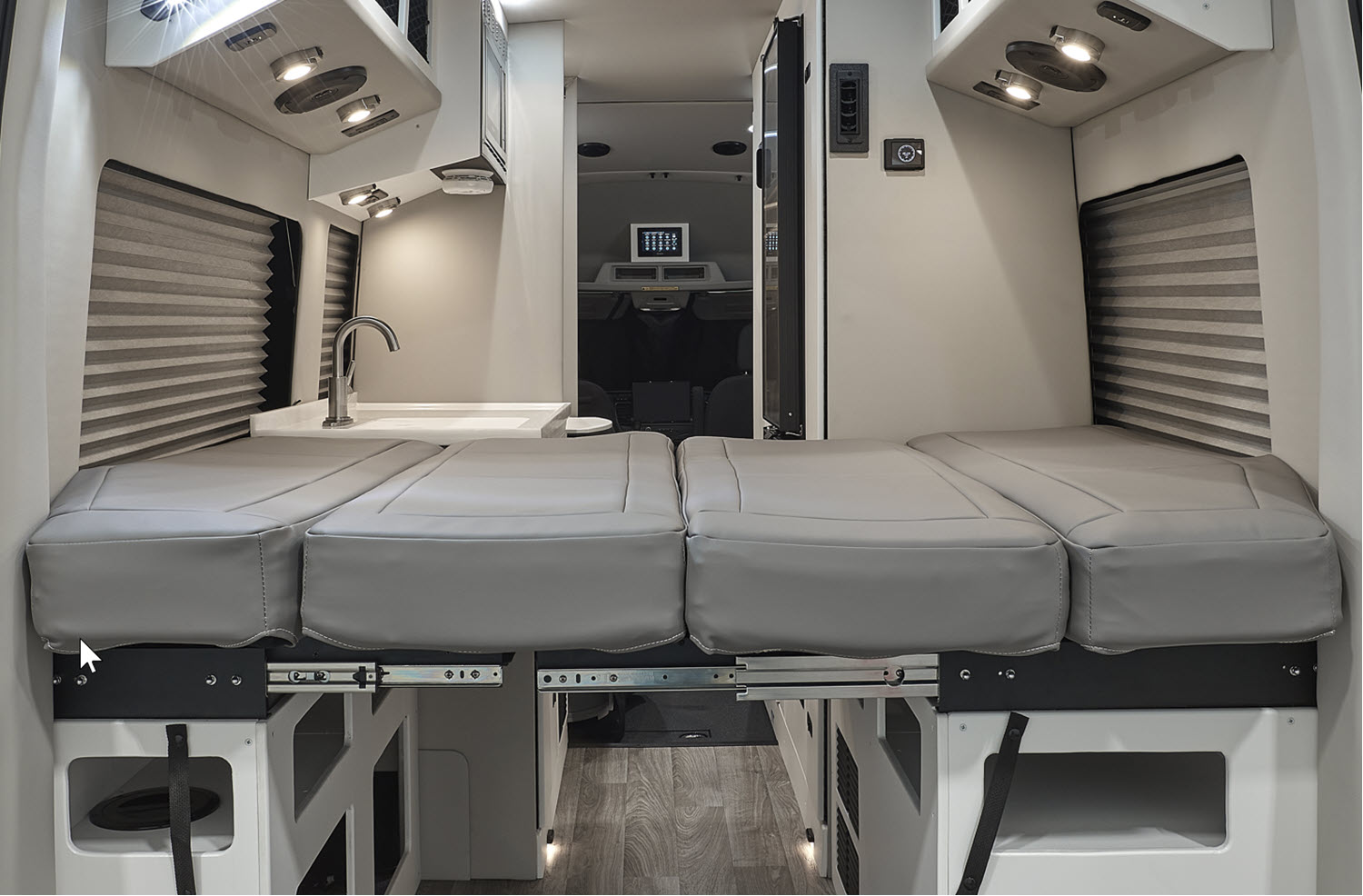

CONVERTIBLE PLATFORM BED
Located in the rear section of the vehicle, this platform bed is more than meets the eye. The 48” x 72″ (Ford Transit Chassis) sleeping space features four, removable triple-density foam cushions supported by two rigid removable platforms that span the lower storage area. Rearrange the cushions and platforms to create a convertible workspace.
Superior materials and technology totally change the game.

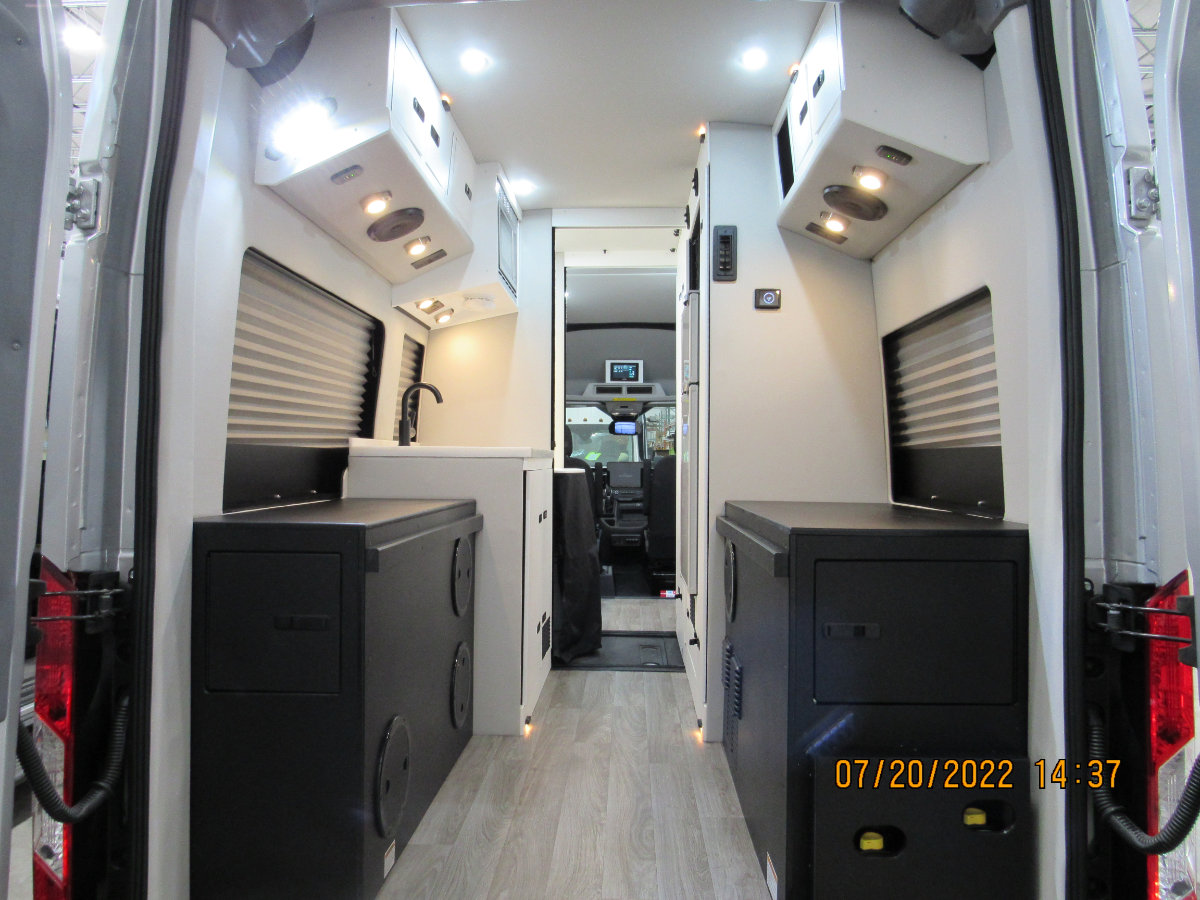

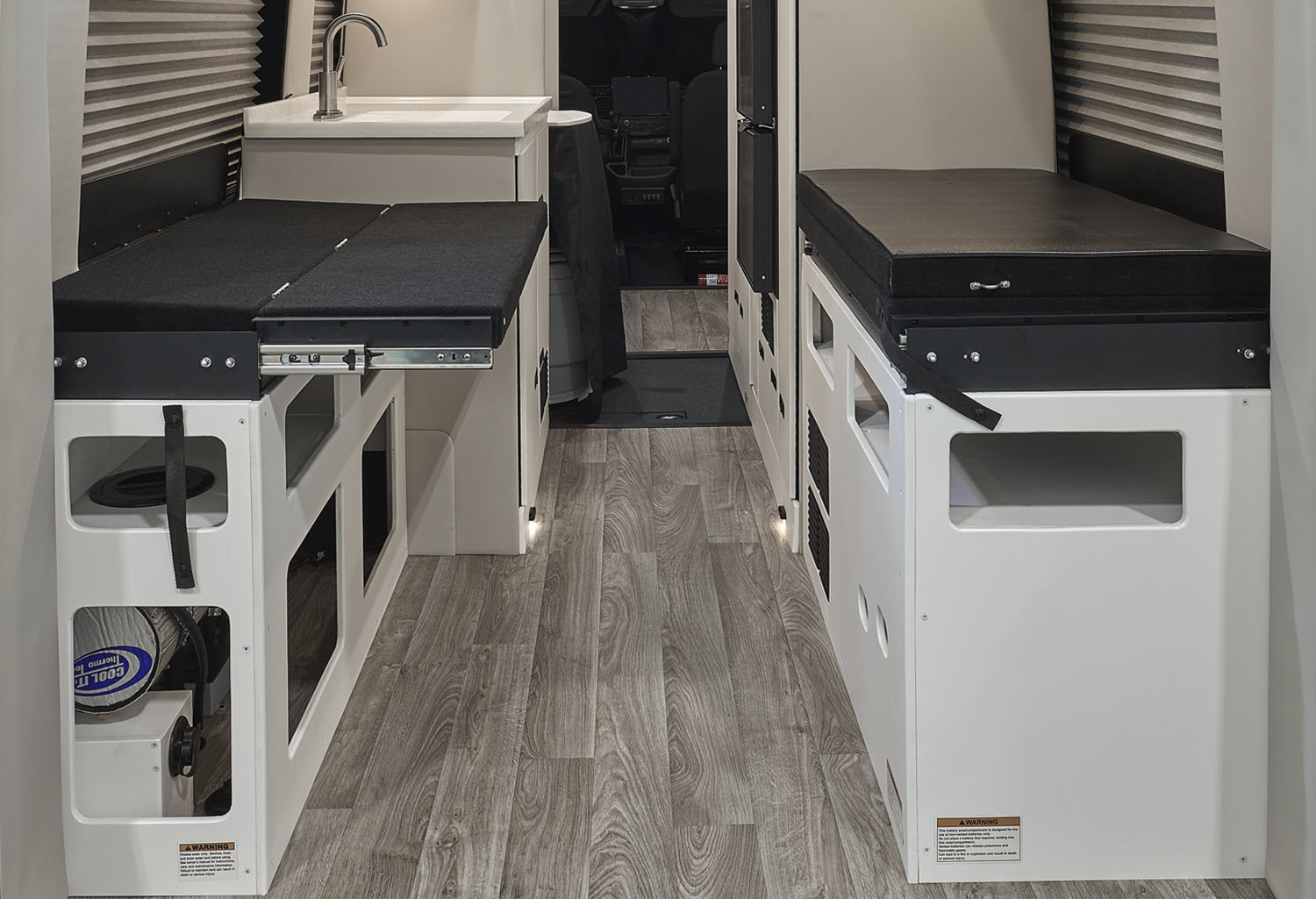

CONVERTIBLE WORKSPACE
People are working away from the office more and more these days. The rear bed platform converts into a table height desk or expanded kitchen countertop area providing travelers with more room to spread out and get things done. Find new creative energy, inspiration, or tranquility just by opening the back doors.
EVEN MORE STORAGE
All Embassy Class B RVs have been configured to provide more storage than any other vehicle in its class. The Dolphin SL takes storage to the max!
In addition to our standard cabinets and overhead bins, the Embassy® Dolphin SL™ features a large ( 41”w x 27”h x 48”d ) storage area underneath the rear platform bed for multiple storage bins or even folding electric bikes. Two additional cubby holes are also located on either side of the platform.
LITHIUM BATTERY
Our UL approved, Lithium-ion battery system will operate the electrical features of your vehicle for days at a time and can be fully recharged with the vehicle’s engine. Options include an advanced battery management system with Bluetooth™ connectivity for monitoring.
EMBASSY CUSTOM VENTING SYSTEM
Our custom 12v 4 vent system is unlike any other in the RV industry. Instead of a conventional roof-mounted RV vent, we use 4 vents, 2-in and 2-out, that draw fresh air in on the passenger side and expel air out on the drivers side without a single hole in the roof. This keeps us looking STEALTH and a roofline free of anything mounted on it or through it.
Each vent is rated for 50,000 hours and are around 90cfm of airflow on high. They draw about 1.5adc on high and all 4 only draw 1.5adc on 1/4 speed, which is where you will be most of the time. You can leave them on for over 600 hours using our 920ah lithium battery. Which is great for owners with pets.
EMBASSY DOLPHIN SL
Additional Features

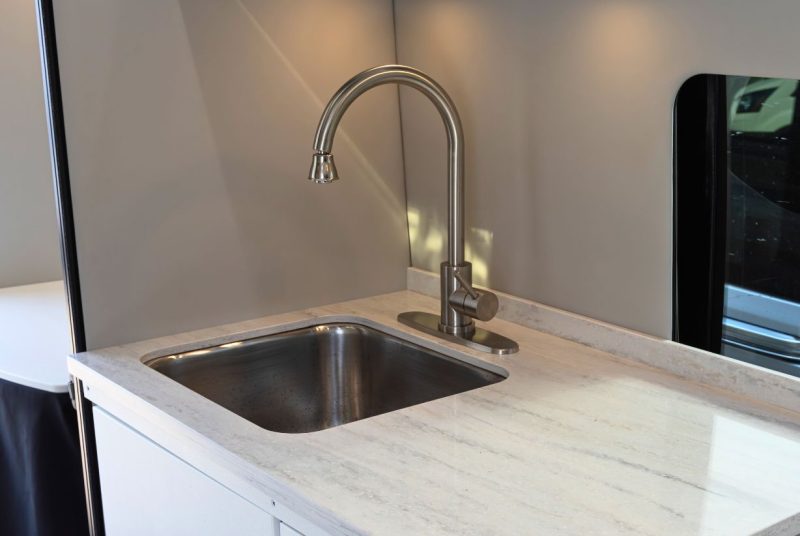

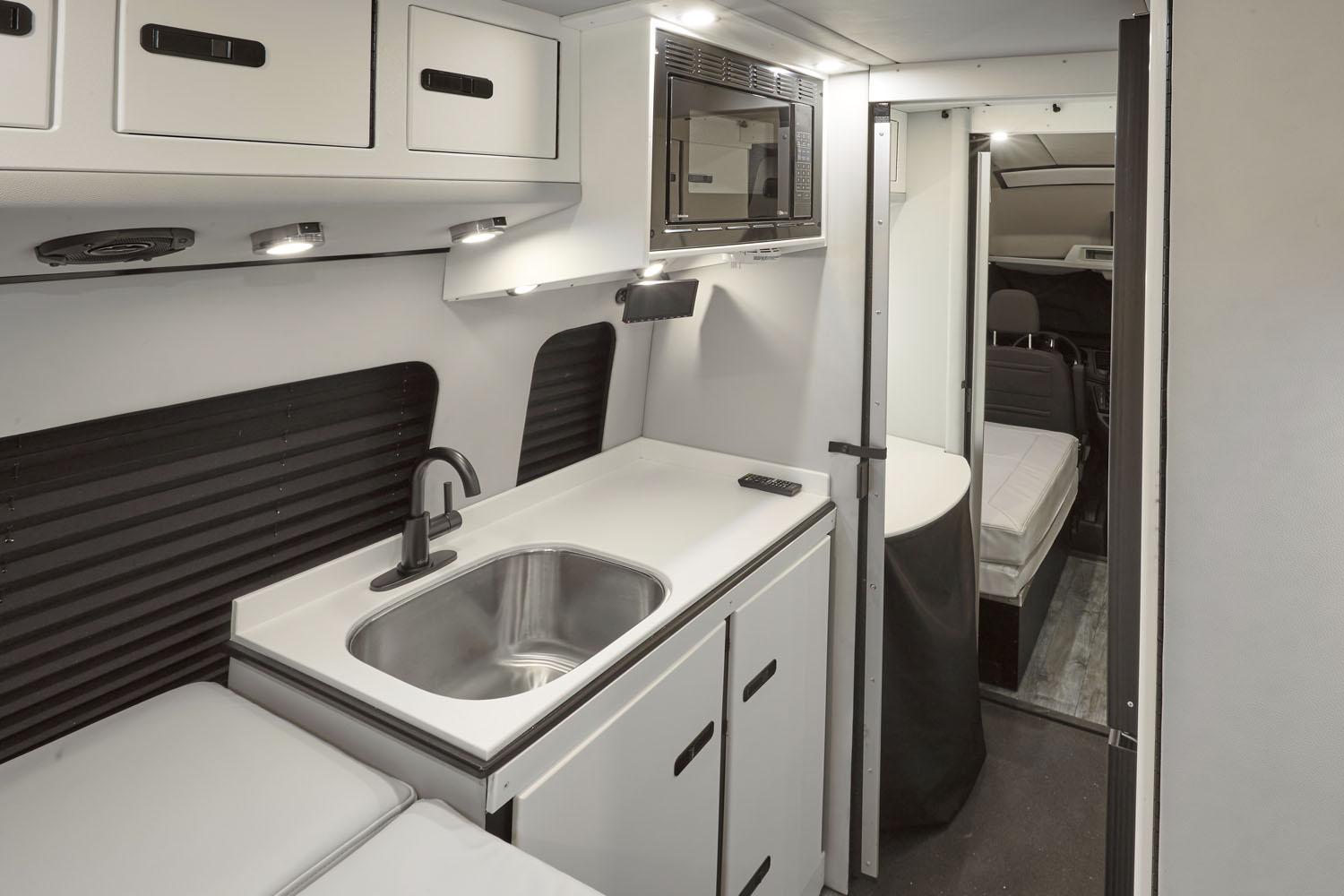

GALLEY SINK & COUNTERTOP
Our galley is equipped with a large stainless steel sink, a beautiful high-quality fixture and a solid surface countertop. It’s large and deep enough to help with both cooking and clean up. The cabinets underneath store a wastebasket and our water purification system.

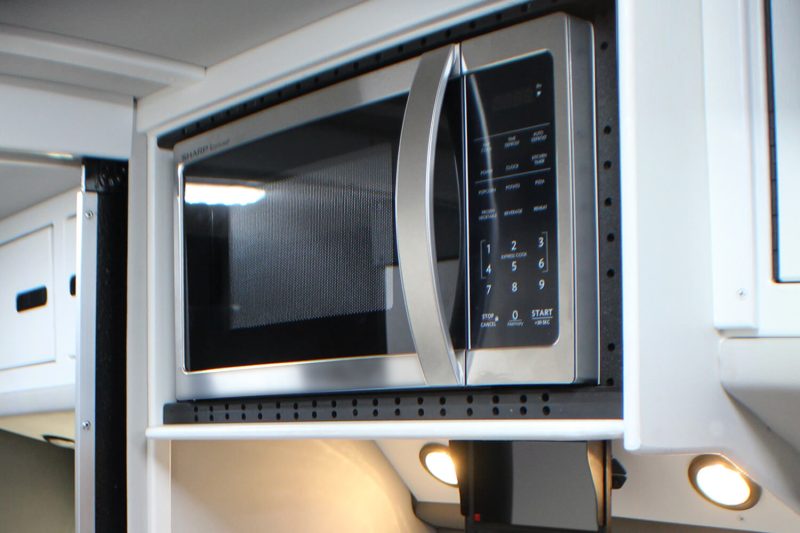

MICROWAVE
All Embassy Class B RVs are equipped with a microwave oven that will cook your meals while keeping vehicle battery use to a minimum. It’s positioned overhead and out of the way to free up valuable counter space.

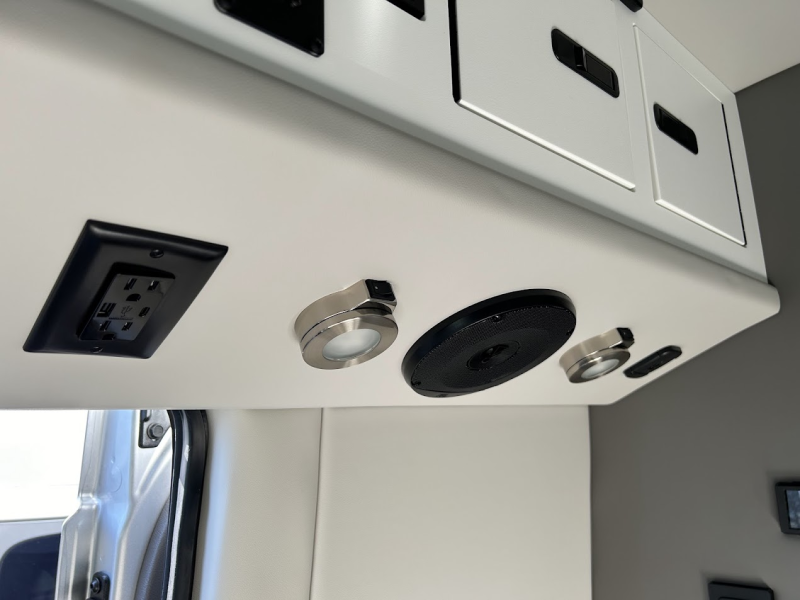

SOFT, ADJUSTABLE LED LIGHTING
You shouldn’t have to choose between seeing clearly and creating a mood. The fully adjustable, soft LED lighting system ensures you can create whatever lighting is necessary or desired whether it’s bright light to read by or low light to help you unwind and relax.
EMBASSY DOLPHIN SL

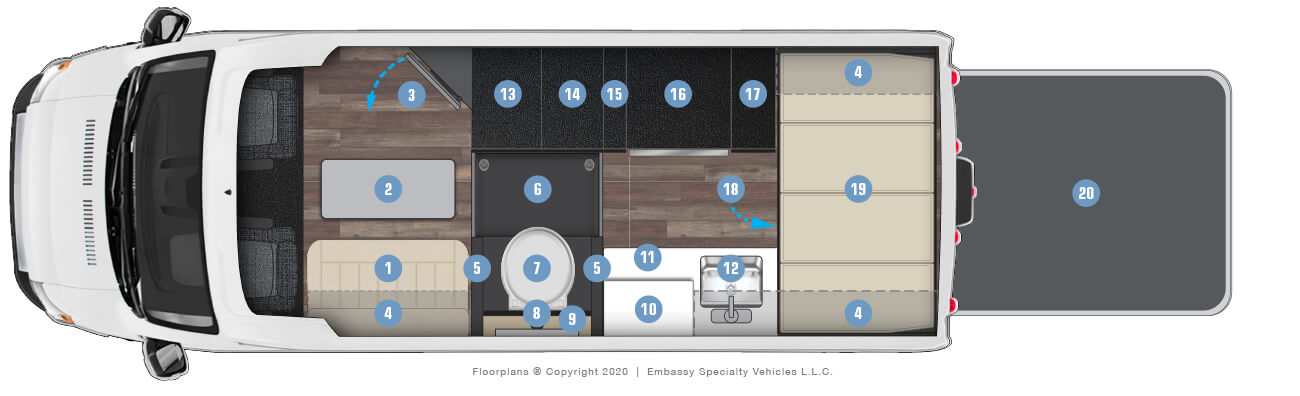

Floorplan
The innovative and efficient floorplan design of the Embassy Dolphin SL is available on the Ford Transit, Dodge Promaster, and applicable Mercedes Sprinter Chassis.
FEATURES
- Telescoping sofa bed ( 45″ x 69″ )
- Free-standing movable table
- 28″ HDTV with swing-out bracket
- Overhead storage cabinets (dashed lines)
- Sliding privacy pocket doors
- In floor shower pan with drains
- Dry-flush toliet by Laveo™
- Convertible vanity with lighted mirror
- Handheld shower and water controls
- Overhead microwave (1.1cf)
- Marine composite countertops
- Sink – stainless steel 16x18x8 w/brass core fixture
- Wardrobe cabinet with closet rod
- Linen closet with with 4 drawers (soft-close)
- Table storage
- 6.8 cf. Refrigerator-Freezer (12v dual comp.)
- Pantry cabinet with 4 drawers (soft-close)
- Open storage area
- Convertible platform bed
EMBASSY DOLPHIN SS
Specifications
The Embassy® Dolphin SL™ is offered with the following standard and optional equipment. Call us today with any questions you may have. We’re standing by ready to help.
| Cabinet – Linen closet with 4 soft-close drawers |
| Cabinet – Pantry with 4 soft-close drawers |
| Cabinet – Wardrobe with closet rod |
| Cabinets – Overhead with hidden push latches |
| Doors – Black or white marine plastic |
| Overhead lock-box |
| Roller Shades |
| Telescoping sofa bed |
| Convertible platform bed |
| Sofa slip cover (marine vinyl) |
| Table (free-standing, movable) |
| Window covers (magnetic) rear, front, and windshield |
| Solid Surface Countertop |
| Faucet – Bar Style (Brass) |
| Microwave (standard) |
| Refrigerator/Freezer 12v |
| Sink – Stainless Steel, 16″ x 18″ x 8″ |
| Waste basket (under the sink) |
| Embassy® Zone™ Water Filtration System |
| Water heater (hydronic) – Tankless |
| Water tanks – Capacity varies by model/chassis |
| Water pump |
| Shower – custom with 1 drain in floor |
| Toilet – Dry Flush by Laveo™ with 6 cartridges |
| Vanity pivoting mirror with LED lights |
| Smart HDTV – 28” (with swing-out bracket) |
| Blu-ray player (Sony™ with JBL™ Stereo) |
| Game connections HDMI |
| Charge center – 2 USB 12v |
| Lights – LED ceiling (dimmable) |
| Lights – LED porch (dimmable) |
| Lights – LED reading (dimmable) |
| Lights – LED vanity (dimmable) |
| Switch panels (integrated) |
| UL Approved Lithium Ion Battery |
| Battery disconnect |
| Battery Management System |
| Breaker panel 110v |
| Fuse panel 12v |
| Inverter – 3000w (6000w peak) with 160 amp charger |
| Air conditioner 20,000 BTU roof mount 12V DC |
| Heat Air/On demand water heater (Hydronic) tankless |
| All marine vinyl walls/ceilings |
| Flooring – Congoleum™ 10 year |
| Floor mats – woven vinyl (optional) |
| Composite fiberglass sub-floor |
| Insulation – 8 layer aircraft style |
| Back-Up Camera on Rearview Mirror |
| Cord and inlet – 30a Smart plugin w/25′ cord & adapter |
| Grey drain (Custom) |
| Lights LED running board |
| Running boards (custom, bed liner sprayed) |
| EMBASSY® CABANA™ (optional) |
| EMBASSY® Porch step w/handrail (optional) |
EMBASSY DOLPHIN SL
Photos
Select a gallery below to view
2022 EMBASSY DOLPHIN SL
2020 EMBASSY DOLPHIN SL
